Create a Venn Diagram of Simulated Color Mixtures

colorMixtureVenn(
  chips,
  w = rep(1, times = length(chips))/length(chips),
  mixingMethod = "exact",
  ellipse = FALSE,
  labels = TRUE,
  names = FALSE,
  sncs = 0.85
)

Arguments

chips: character vector of standard Munsell color notation (e.g. "10YR 3/4")
w: vector of proportions, can sum to any number, must be same length as chips
mixingMethod: approach used to simulate a mixture: see aqp::mixMunsell() for details
ellipse: logical, use alternative ellipse-style (4 or 5 colors only)
labels: logical, print mixture labels
names: logical, print names outside of the "sets"
sncs: scaling factor for set names

Value

nothing returned, function is called to create graphical output

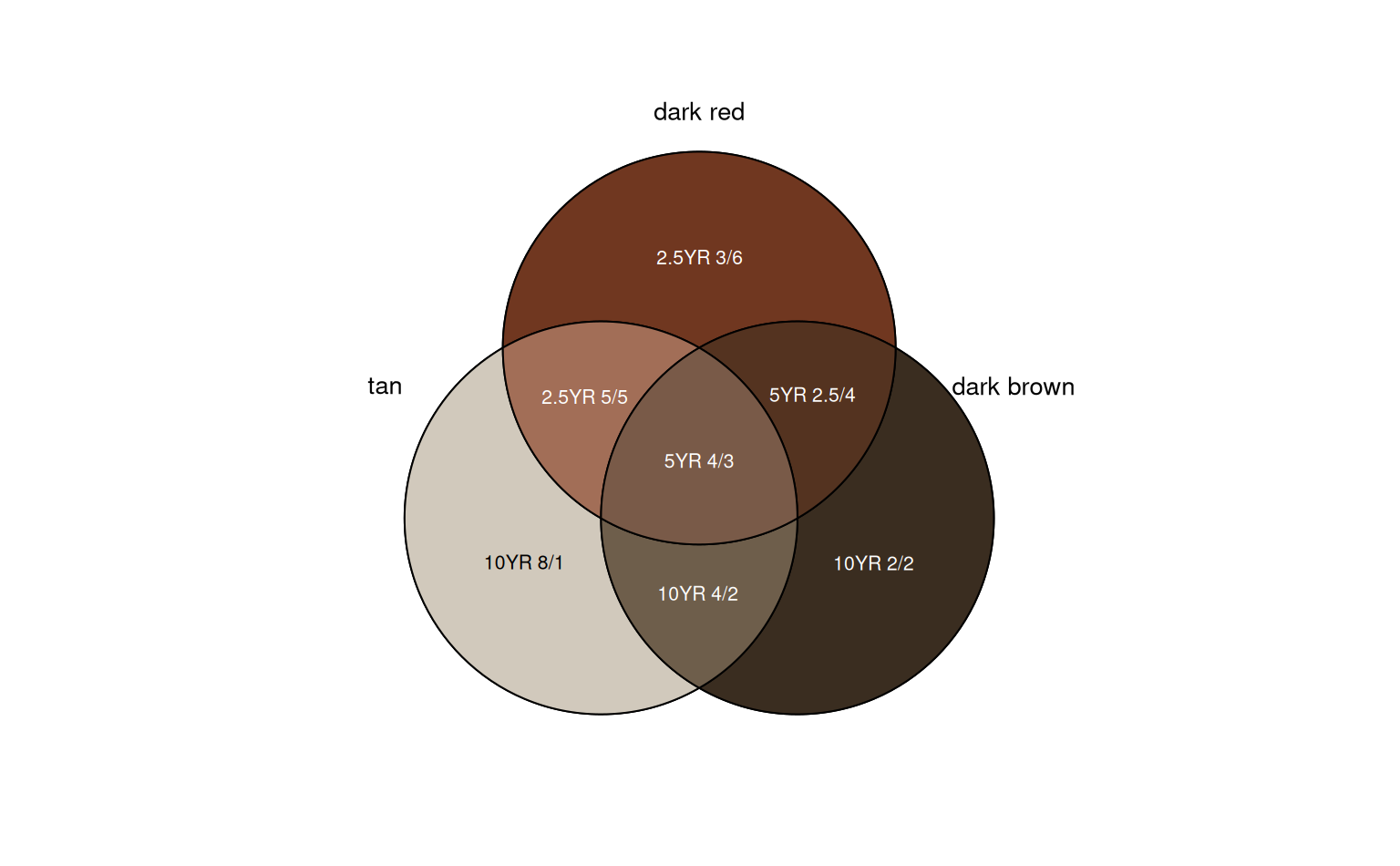

Examples


if (FALSE) {
if(requireNamespace("venn") & requireNamespace("gower")) {

chips <- c('10YR 8/1', '2.5YR 3/6', '10YR 2/2')
names(chips) <- c("tan", "dark red", "dark brown")

colorMixtureVenn(chips)
colorMixtureVenn(chips, names = TRUE)

colorMixtureVenn(chips, w = c(1, 1, 1), names = TRUE)
colorMixtureVenn(chips, w = c(10, 5, 1), names = TRUE)

}
}
