Annotate Diagnostic Features

Annotate diagnostic features within a sketch of soil profiles.

Usage

addDiagnosticBracket(
  s,
  kind,
  feature = "featkind",
  top = "featdept",
  bottom = "featdepb",
  ...
)

Arguments

s: SoilProfileCollection object
kind: character, filter applied to feature column of diagnostic horizons registered within s
feature: column name containing feature kind
top: column name containing feature top depth
bottom: column name containing feature top depth
...: additional arguments passed to addBracket()

Details

Additional examples can be found in this tutorial.

Note

This is a low-level plotting function: you must first plot a SoilProfileCollection object before using this function.

Author

D.E. Beaudette

Examples


 # example data
x <- c(
  'P1:AAA|BwBwBwBw|CCCCCCC|CdCdCdCd',
  'P2:Ap|AA|E|BhsBhs|Bw1Bw1|CCCCC',
  'P3:A|Bt1Bt1Bt1|Bt2Bt2Bt2|Bt3|Cr|RRRRR',
  'P4:AA|EEE|BhsBhsBhsBhs|BwBw|CCCCC',
  'P5:AAAA|ACACACACAC|CCCCCCCCCCC|CdCdCd'
)

s <- quickSPC(x)

diagnostic_hz(s) <- data.frame(
  id = c('P1', 'P4'),
  t = c(12, 25),
  b = c(70, 100),
  kind = c('Best', 'Best')
)

op <- par(no.readonly = TRUE)
par(mar = c(0, 0, 3, 2))

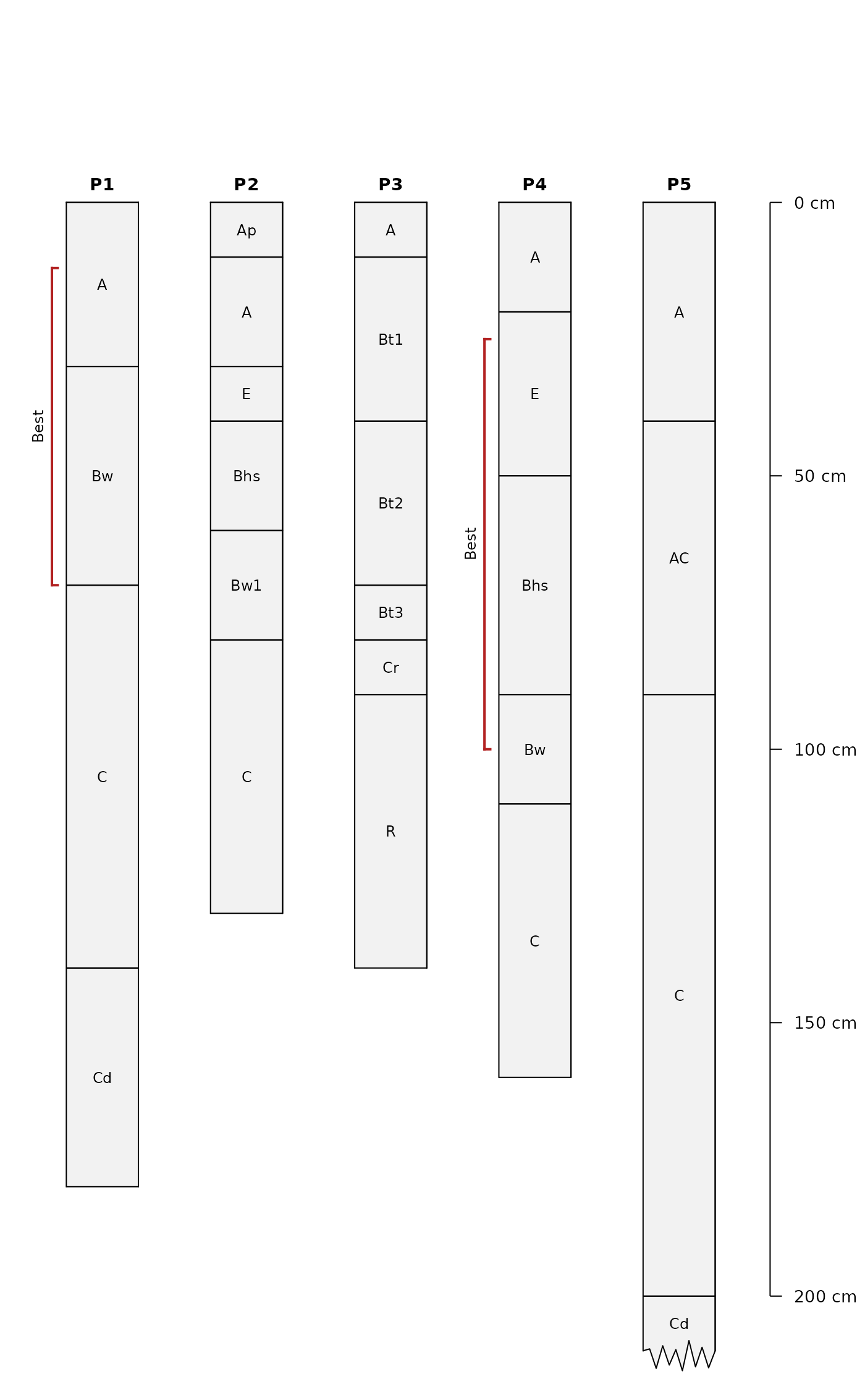

# sketches
plotSPC(
  s, name = 'name', name.style = 'center-center', cex.names = 0.75, max.depth = 210
)

# note that custom top/bottom depths must be supplied
addDiagnosticBracket(
  s, feature = 'kind', kind = 'Best', top = 't', bottom = 'b',
  labcol = 'kind',
  offset = -0.35, col = 'firebrick', tick.length = 0.04, lwd = 2
)


par(op)
